PEO Series Reference RF Oscillators

Product Introduction

Feature：

● Extreme low phase noise (<20fs @3GHz)

● Multi-Frequency combination (from 71.4MHz to 4GHz)

● Selected OXCO and temperature compensation

● Fan-out option, keep amplitude and phase consistency

● Eth/RS232


Basic Specification

Frequency Stability: Allan Deviation

Frequency 100MHz
=1s≤2x10-12
=10s ≤3x10-12
 =100s ≤6x10-12
 =1000s ≤3x10-12

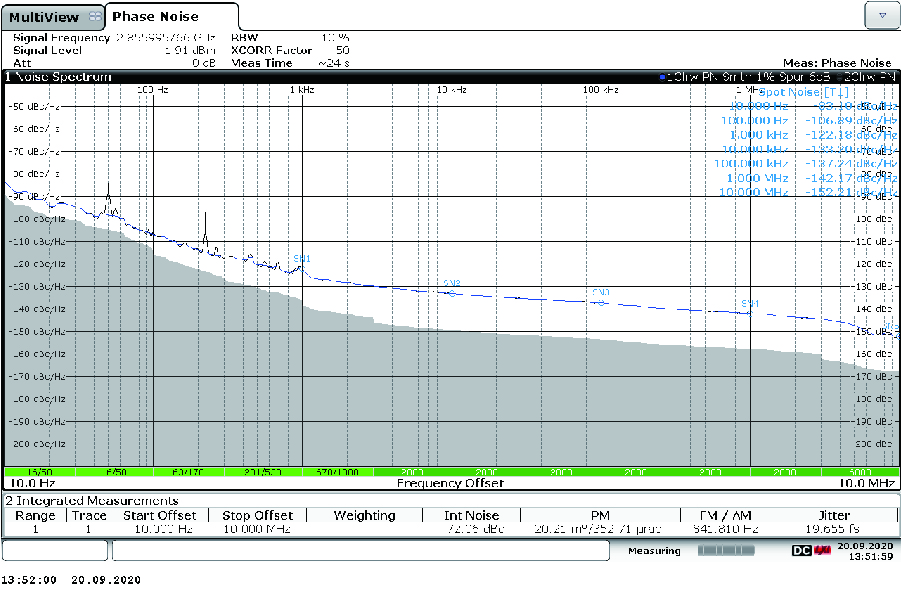

Phase Noise (SSB)

Frequency100MHz
1Hz108 dBc
10Hz 130 dBc
100Hz 145 dBc
10kHz   158 dBc

Amplifier and Distribution (Fan-out)

Consistency of output signals: <0.2db


Example for 2856MHz

Power (dBm)Jitter (fs)Frq. stability (2 hours)Amp. Stability (2 hours)
-1.9119.65545Hz0.02dBm



Reference RF Oscillators主图 详情-03.jpg


Reference RF Oscillators主图 详情-04.jpg
